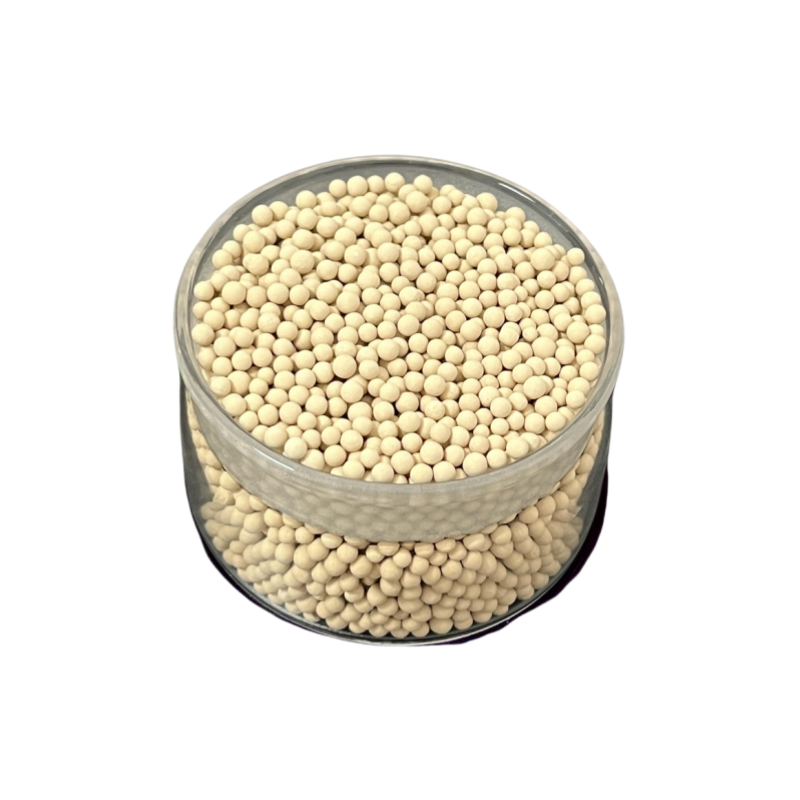

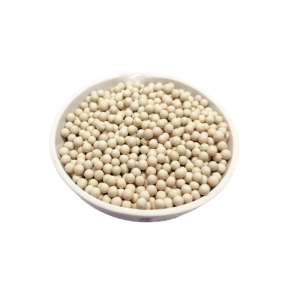

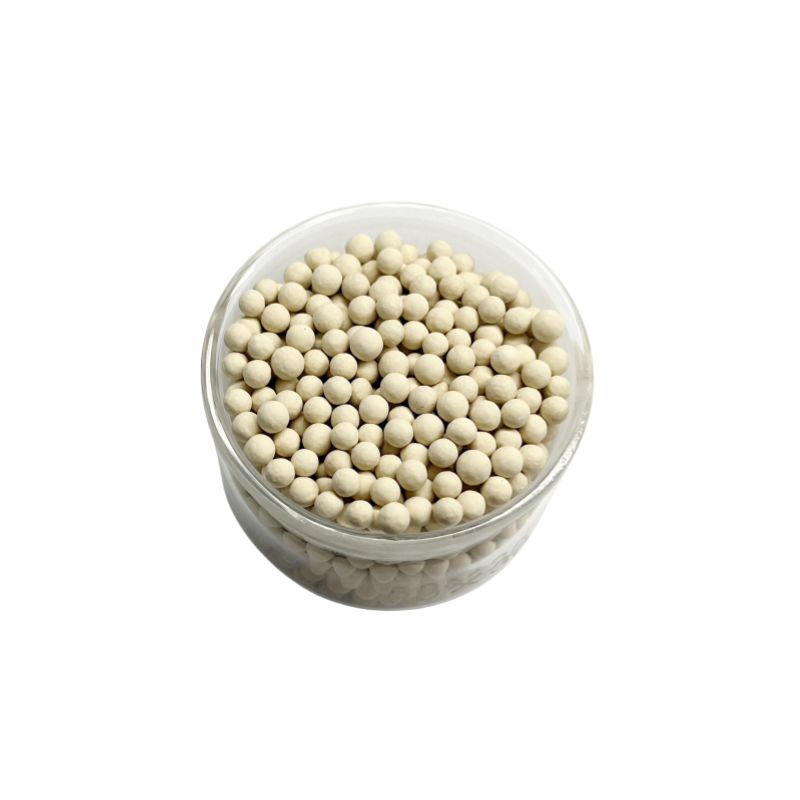

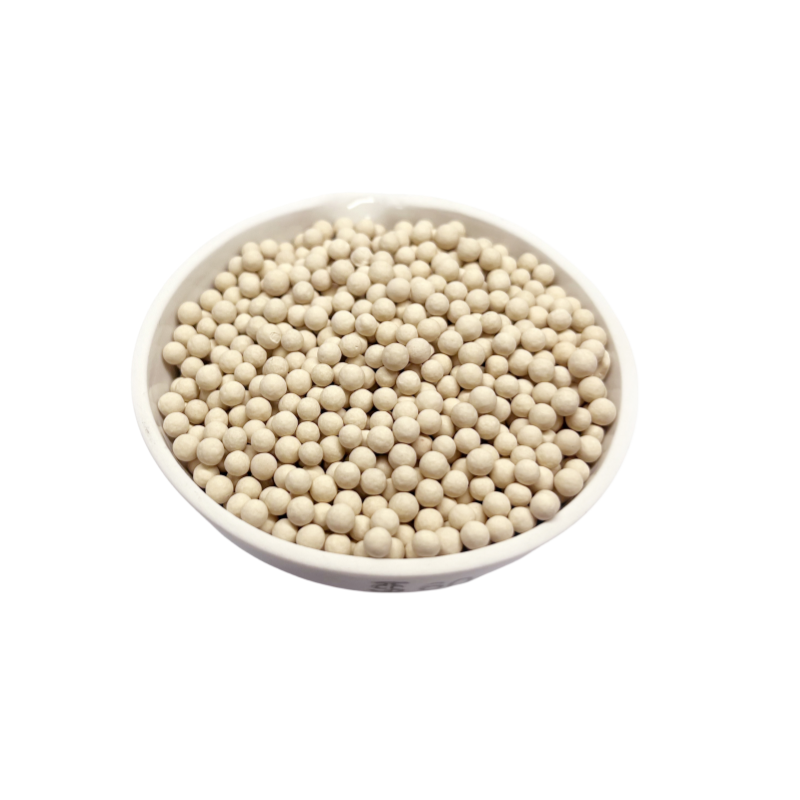

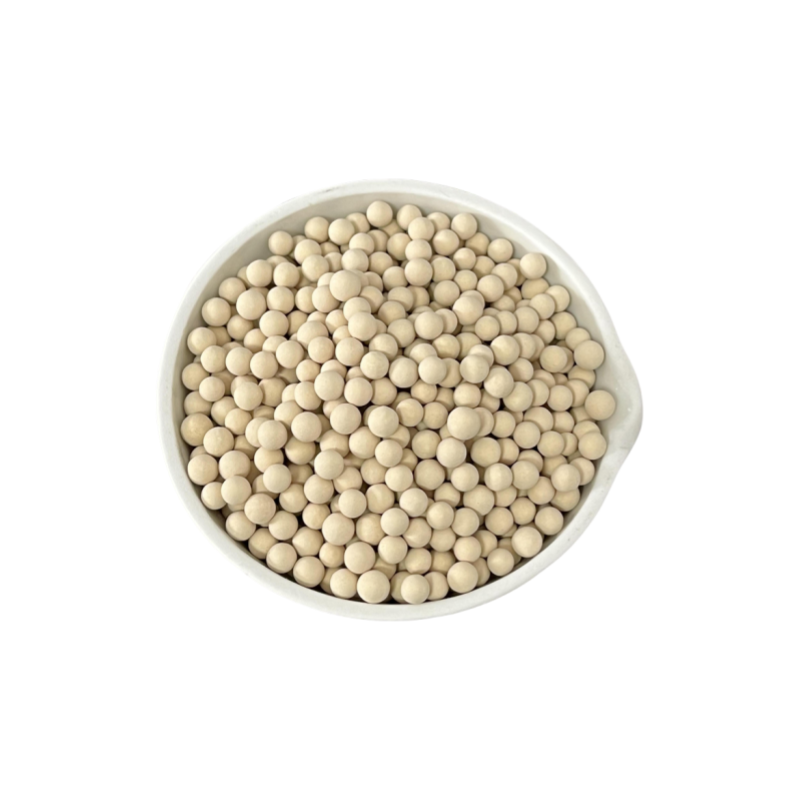

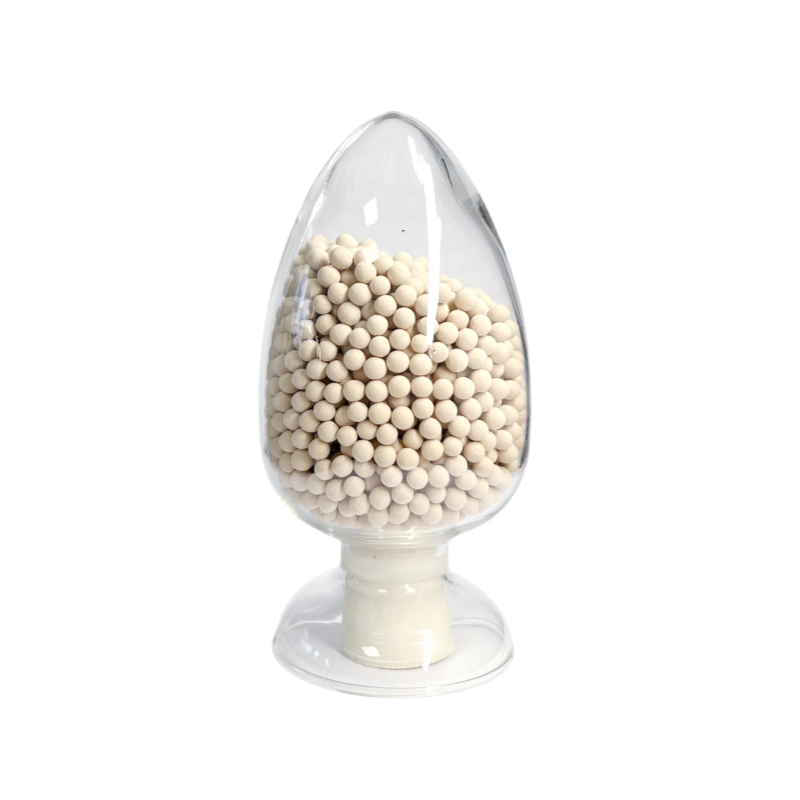

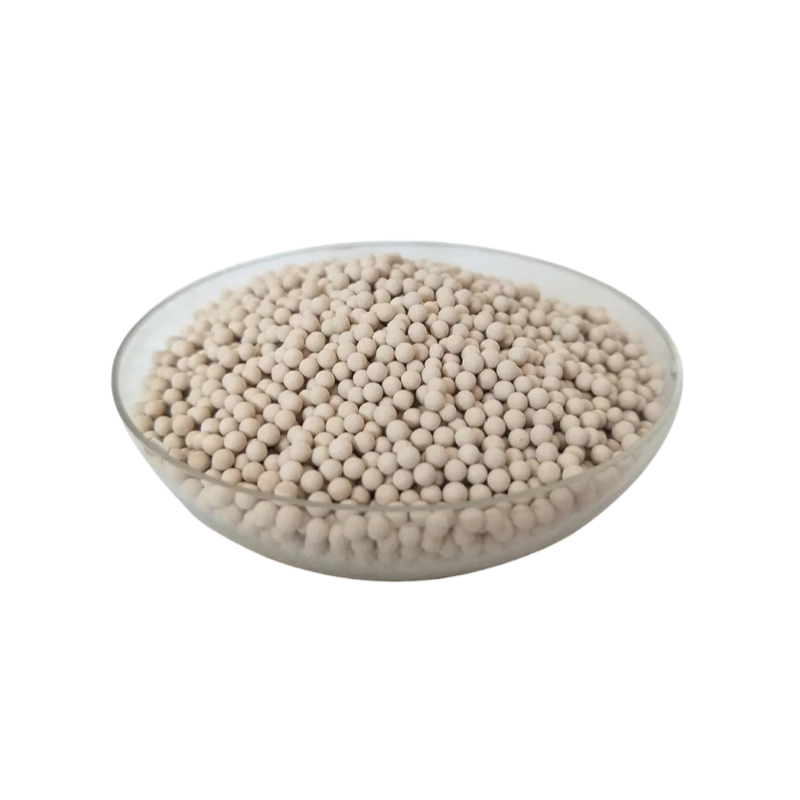

Chemequip-H 5A molecular sieve is a non-viscous binderless molecular sieve specifically designed for the production of hydrogen by PSA pressure swing adsorption.
Technical Indictors |
Unit |
Quality Index |
Model |
|
Chemequip-H 5A |
Appearance |
|
Bead |
Diameter |
mm |
1.6~2.5 |
Static H₂O Adsorption Capacity(25℃, Saturated NaCI) |
% |
≥25 |
Static N₂ Adsorption Capacity(25℃,760mmHg) |
ml/g |
≥11 |
Static CO Adsorption Capacity(25℃,760mmHg) |
ml/g |
≥28 |
Static CO₂ Adsorption Capacity(25℃,2.5mmHg) |
% |
|
Static CO₂ Adsorption Capacity(25℃,250mmHg) |
% |
|
Package Water Content |
% |
≤1.5 |
Crush Strength |
N |
≥35 |
Relative Standard Deviation of Crush Strength |
|
≤0.3 |
Compacted Bulk Density |
g/ml |
≥0.68 |
Abrasion Rate |
% |
≤0.3 |
Granularity |
% |
≥97 |
