Lithium Molecular Sieves Adsorbents for VPSA Oxygen Production
Lithium Molecular Sieves Adsorbents Introduction
Lithium molecular sieve is a low-silica molecular sieve and almost all of the cations were replaced with lithium-ion. The nitrogen capacity and separation rate of nitrogen and oxygen is twice as high as a normal molecular sieve for oxygen generators，therefore it has the characteristics of higher purity of oxygen generating, higher oxygen production efficiency and more energy saving, etc. Lithium molecular sieve is mainly used in medical oxygen and home oxygen generators and rich oxygen generators in PSA and VPSA processes.

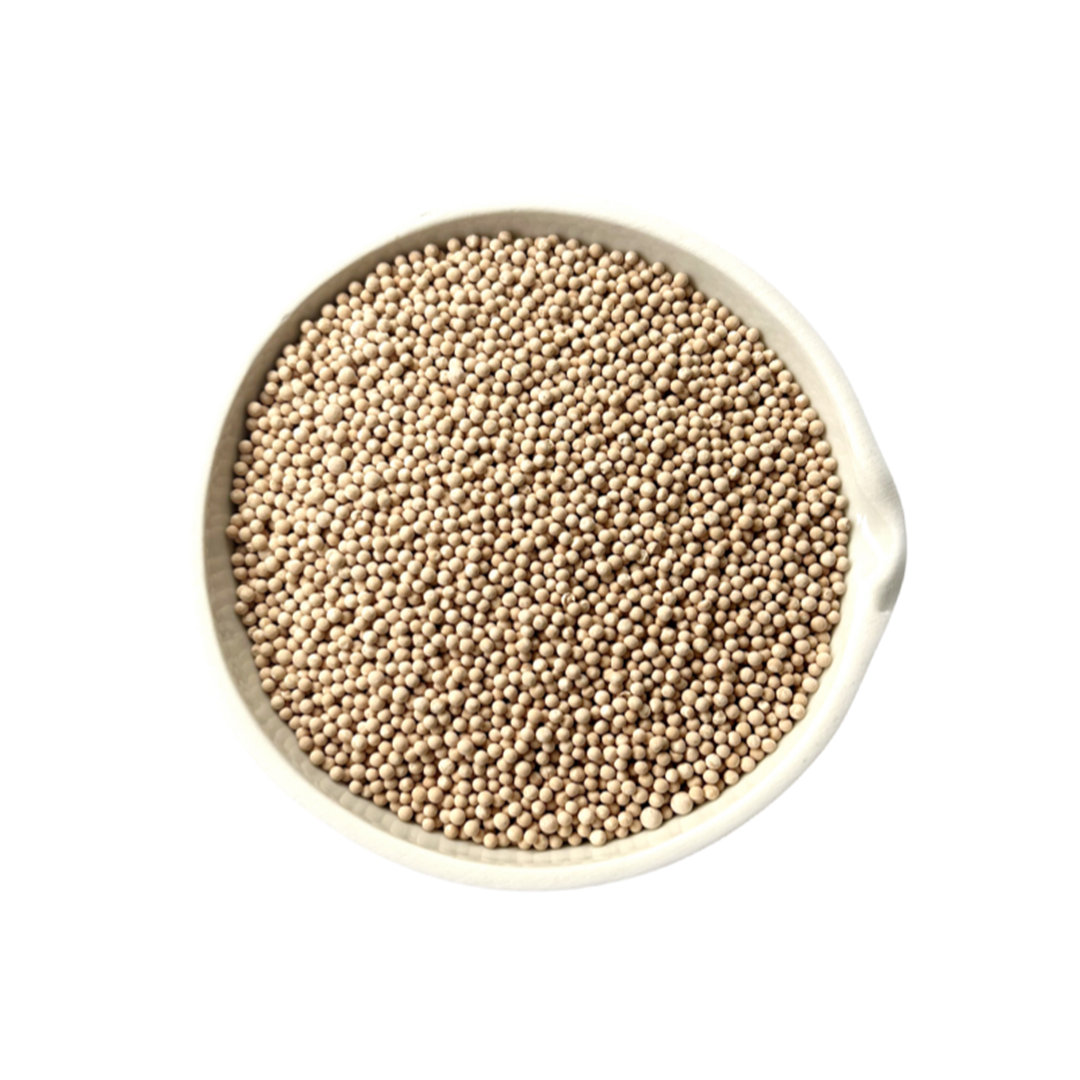

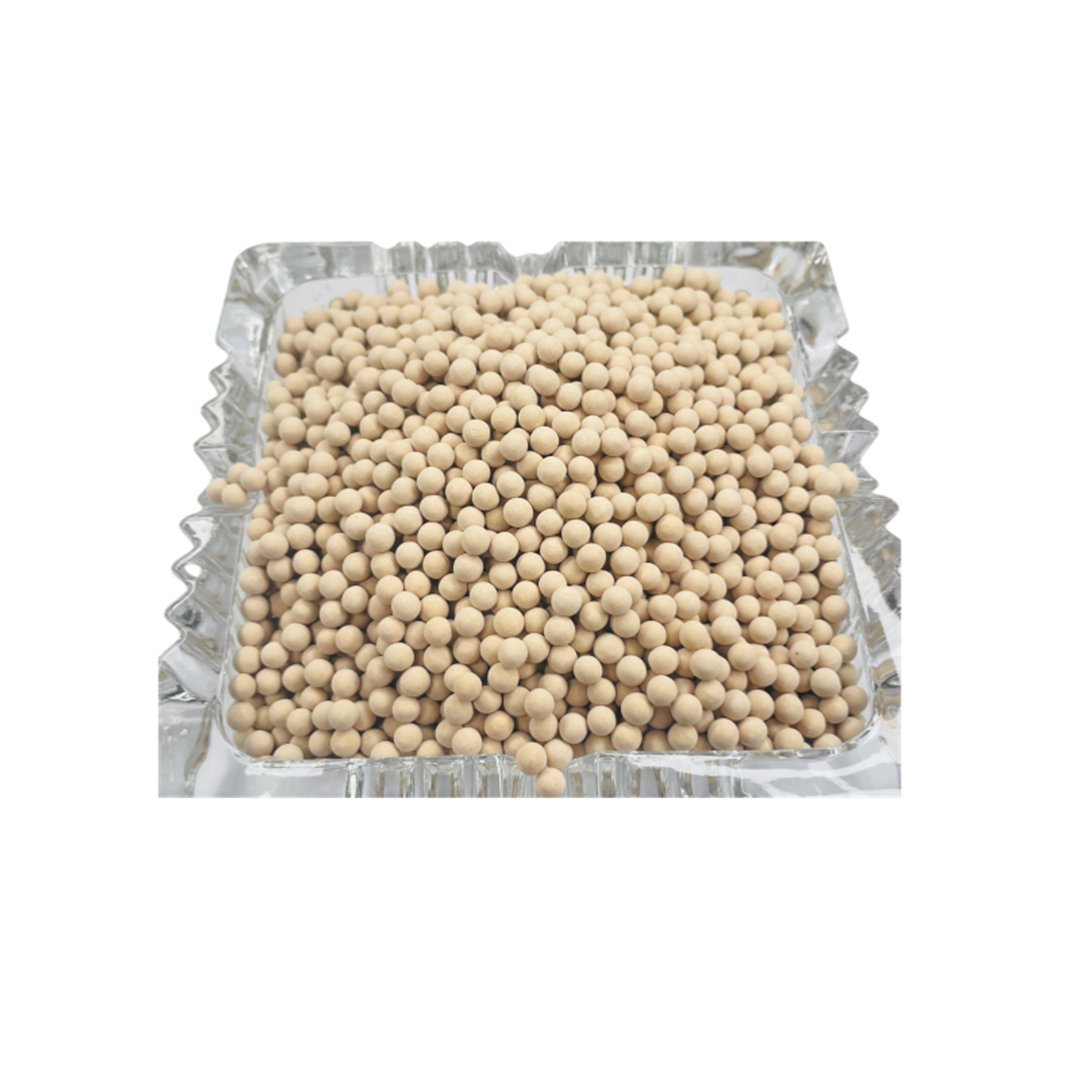

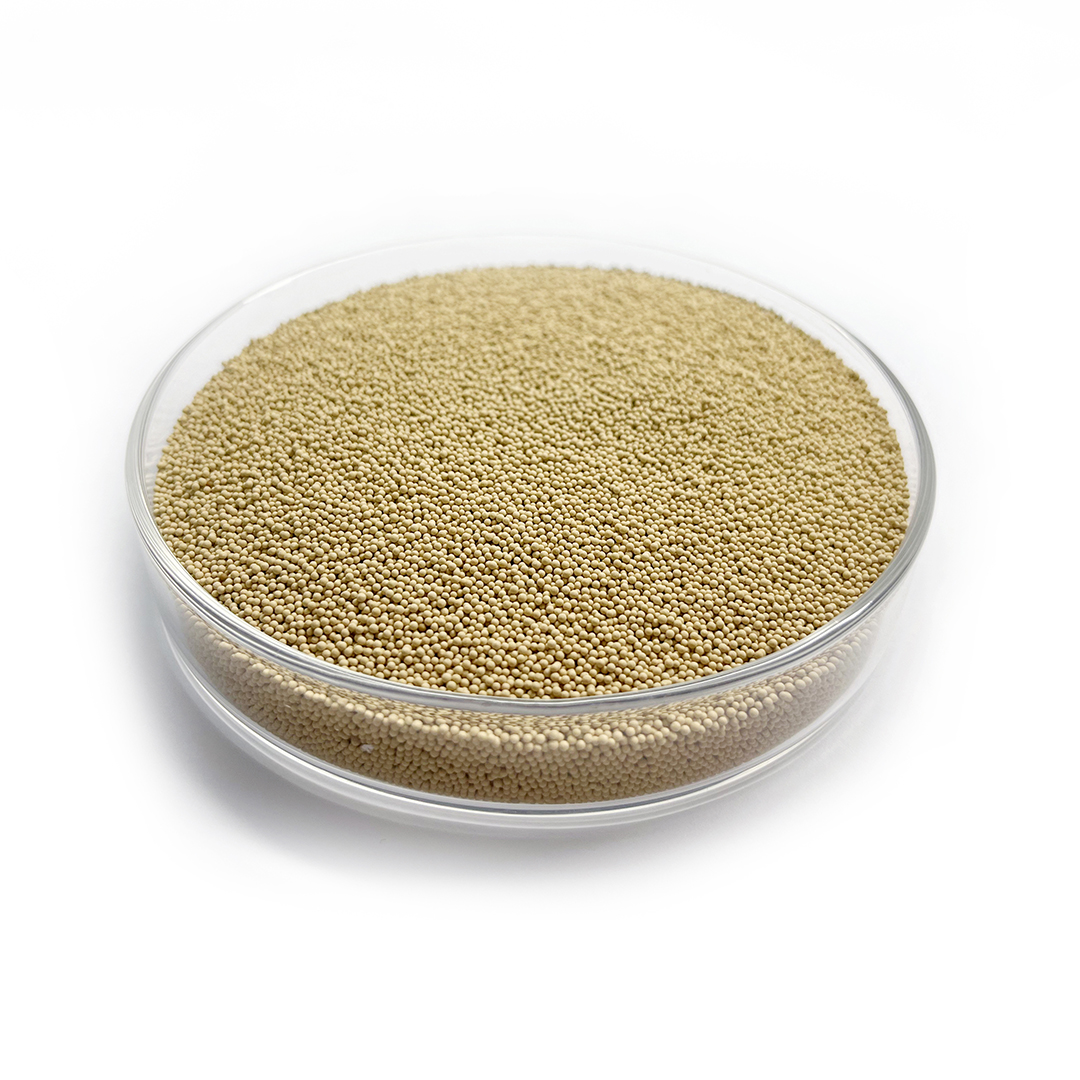

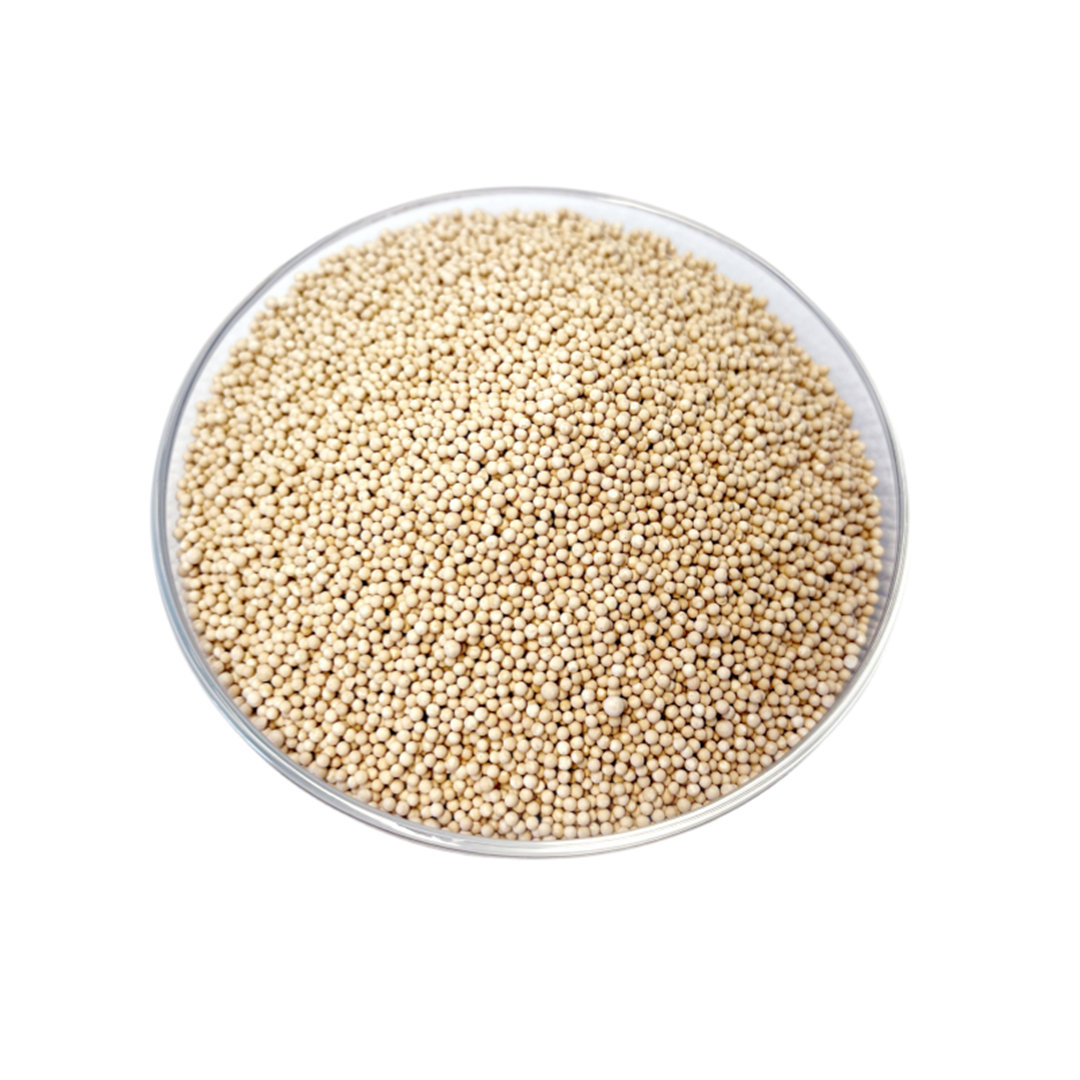

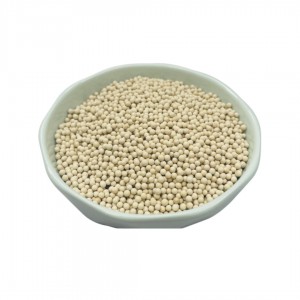

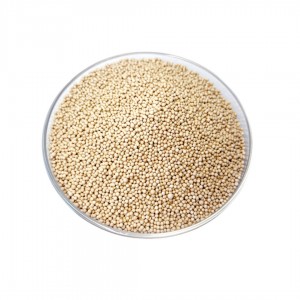

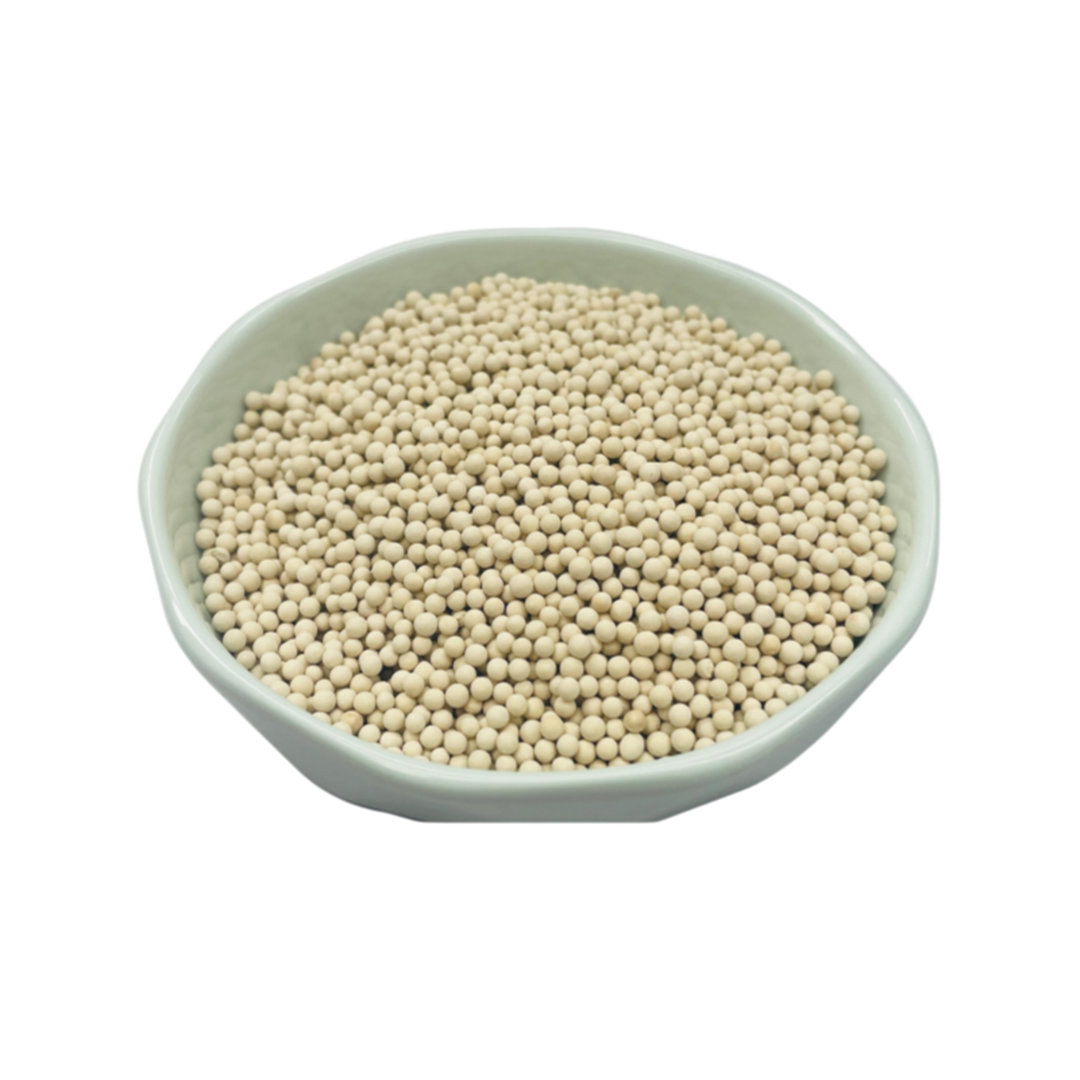

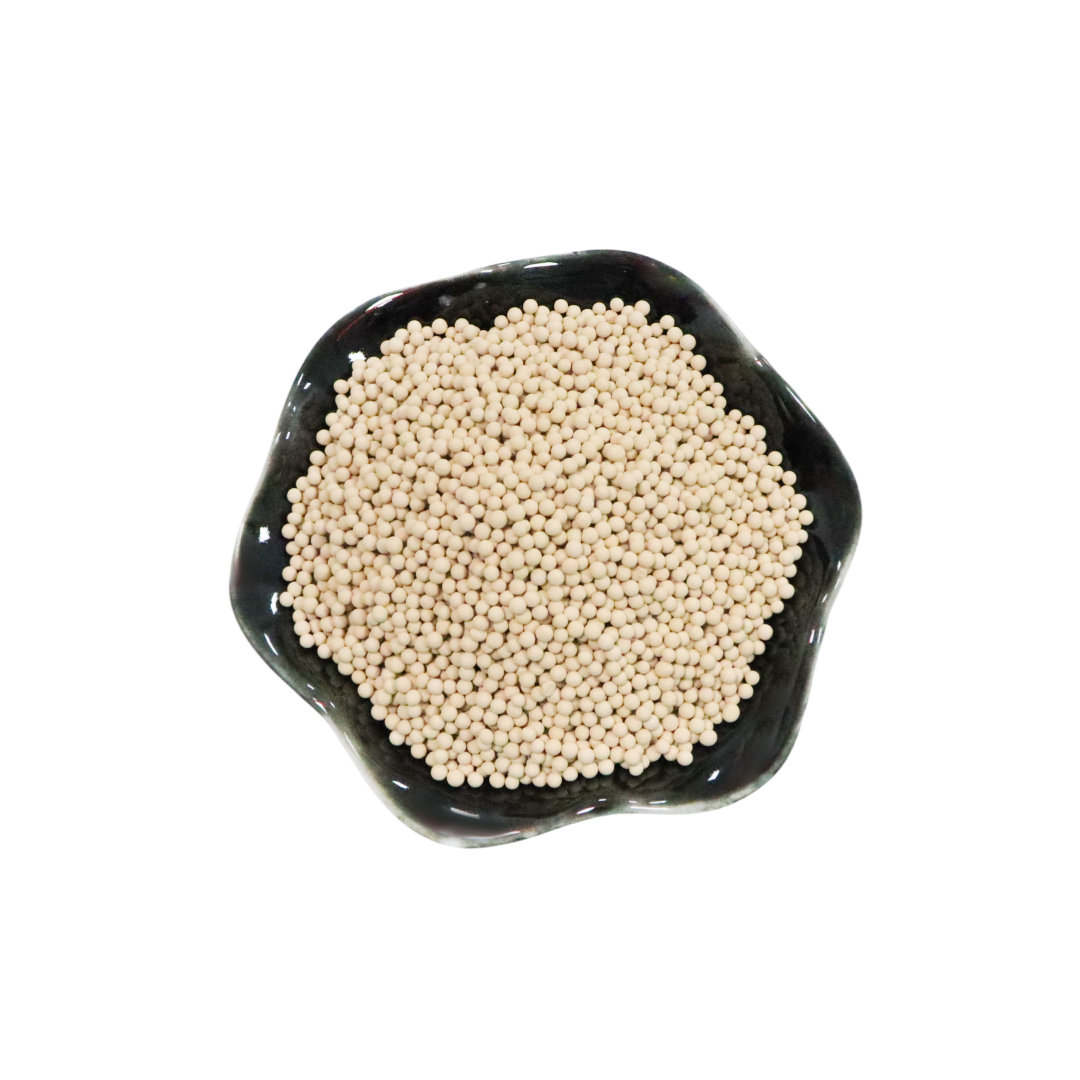

Lithium Molecular Sieve Picture
Lithium Molecular Sieves Adsorbents Technical Specification
|
Technical Indictors |
Unit |
Specification |
|
Particles Diameter |
mm |
0.4~0.8; 1.3~1.7 |
|
Loose Bulk Density |
kg/m³ |
≥600 |
|
Wear Raito |
% |
≤0.5 |
|
Granularity |
% |
≥95 |
|
Package Water Package（ Lol） |
% |
≤1.5 |
|
Adsorption to N₂ |
ml/g |
≥25 |
|
Nitrogen - Oxygen Separation Coefficient |
/ |
≥6.3 |
Lithium Molecular Sieves Adsorbents Application
- Oxygen generators for medical or household use
- Oxygen production in pressure swing adsorption (PSA) air separation
- Vacuum pressure swing adsorption (VPSA) air separation oxygen production
- Vacuum pressure swing adsorption (VPSA) oxygen enrichment

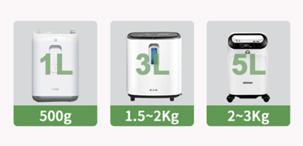

The Recommended Amount of Lithium Molecular Sieve for Oxygen Generator
