Insulating Glass Molecular Sieves Adsorbents Desiccants Introduction

Chemequip IG-2000 molecular sieve is a homogeneous adsorbent. It is a molecular sieve developed by Chemequip company for the insulating glass market, which provides high water adsorption capacity, low dust amount and sufficient strength. It provides excellent comprehensive performance for aerated insulating glass. This type of molecular sieve is specially manufactured for automatic pneumatic filling production line.

Insulating Glass Molecular Sieves Adsorbents Desiccants Features

Highly Selective Adsorption

The 1G-2000 is designed for high water absorption capacity to provide adequate dew point protection and minimal absorption capacity for air or other filled gases such as Ar or SF₆, minimizing gas co-adsorption in confined spaces and reducing bending.

Low dust volume

IG-2000 In the production process, the insulating glass manufacturer's requirements for high definition of glass products are fully considered, and the low dust amount makes that no dust will fall into the insulating glass interlayer during molecular sieve filling.

Residual Water Content

IG-2000 As a special adsorbent for insulating glass, it can be fully activated at the time of shipment and can be directly used in filling operations.

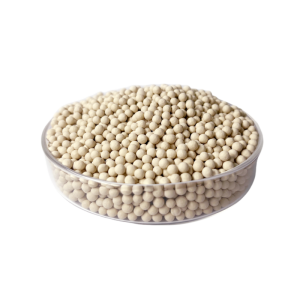

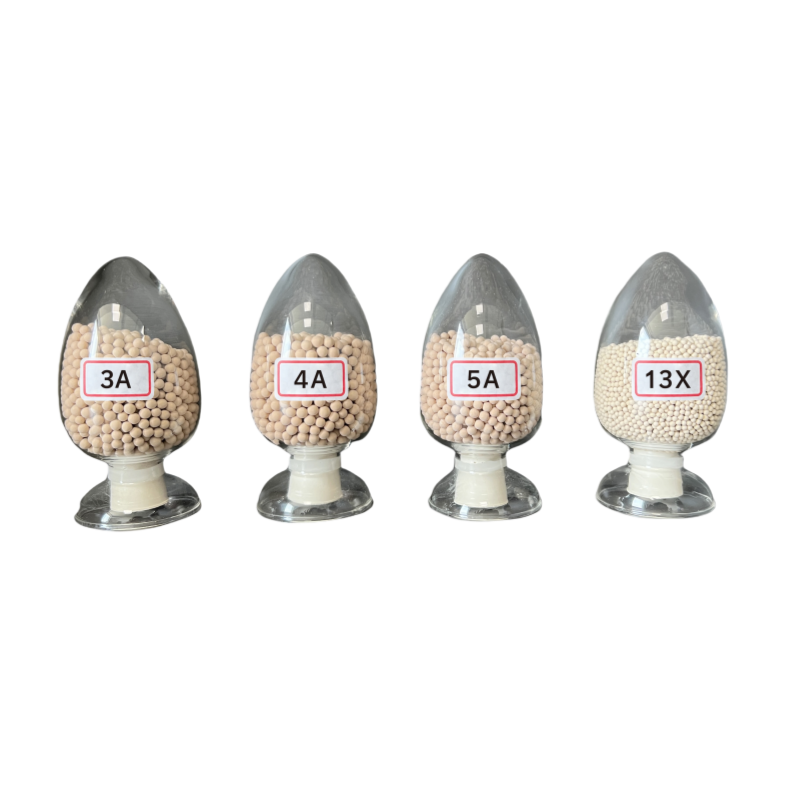

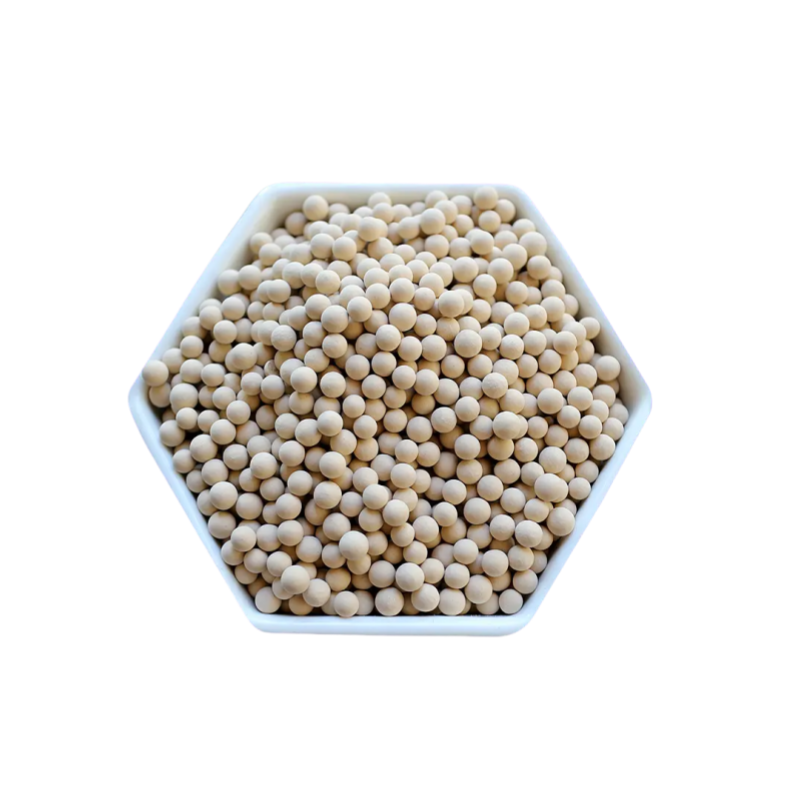

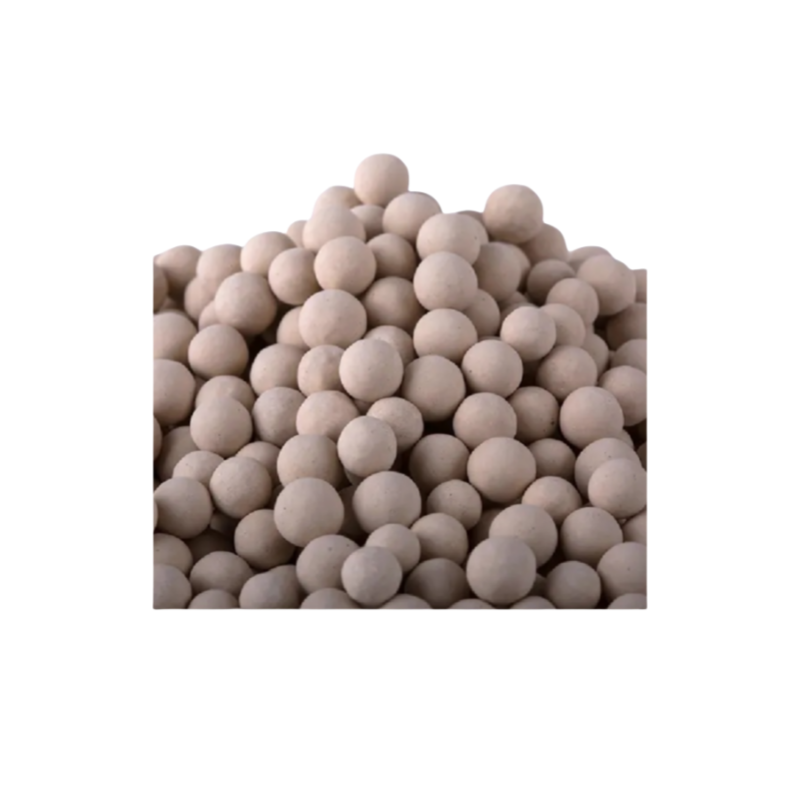

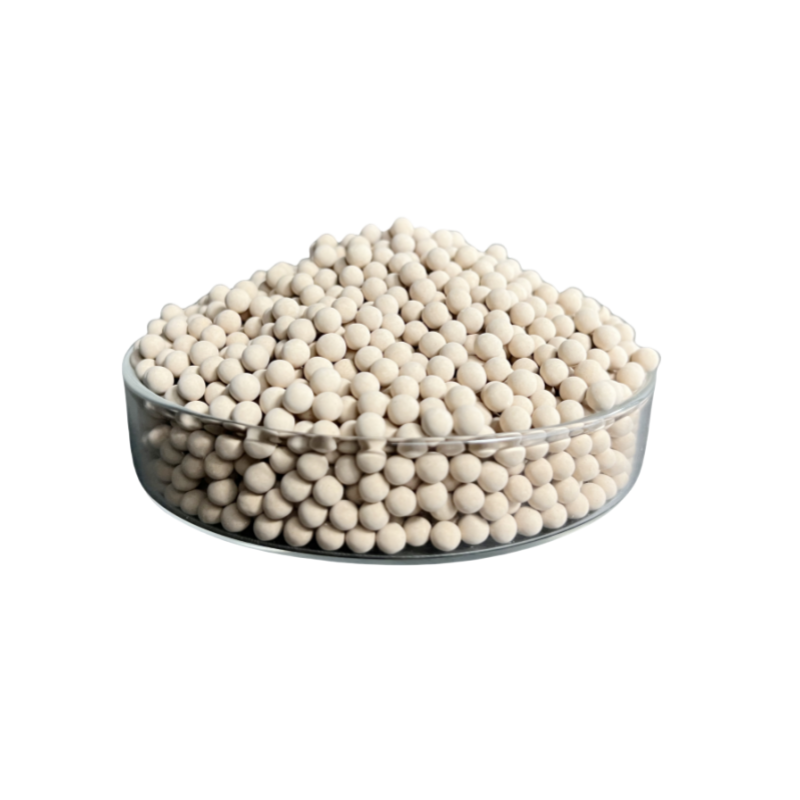

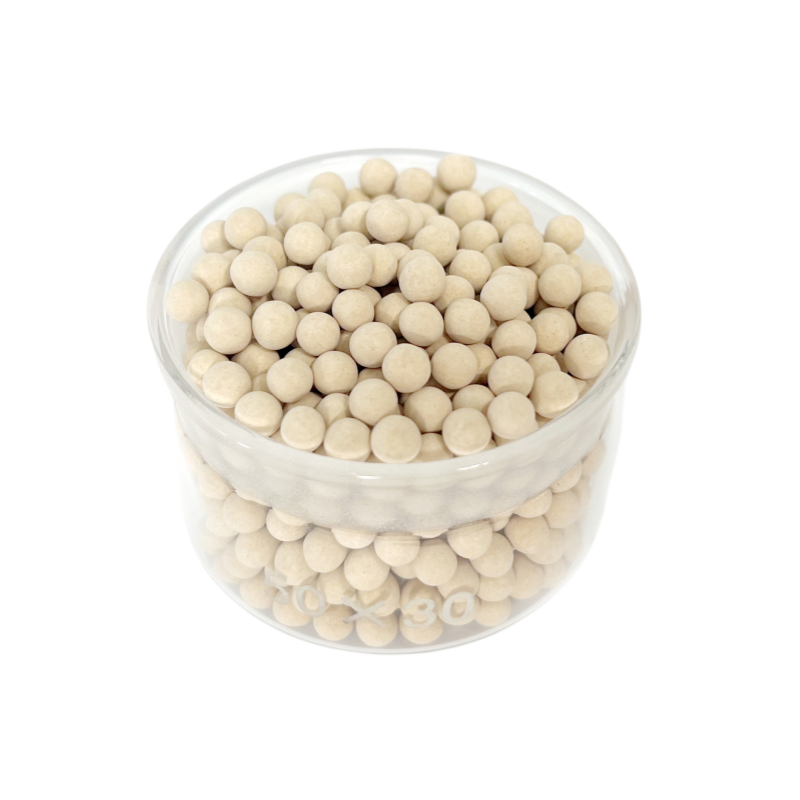

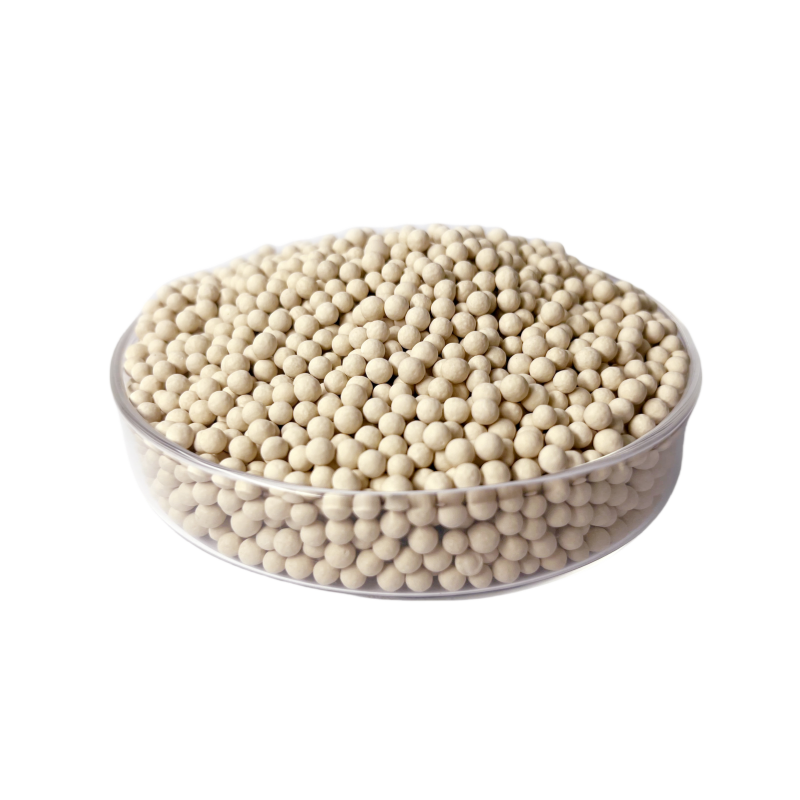

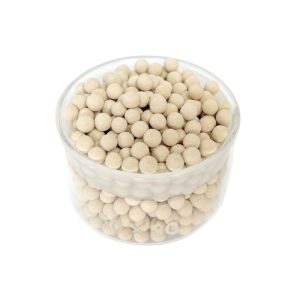

Insulating Glass Molecular Sieve Adsorbents Desiccants Picture

Insulating Glass Molecular Sieves Adsorbents Desiccants Technical Specification

Technical Indicators	Quality Index	Quality Index
Type	10*20Mesh	20*32Mesh
Appearance	Bead	Bead
Diameter	0.85～2mm	0.55～1mm
Equilibrium Water Capacity %（17.5mmHg）	≥20.5	≥20.5
Residual Water Content（When Shipped）%	≤1.5	≤1.5
Bulk Density, kg/m³	730～780	730～780
Dew Point reach up to,℃	-73	-73
Temperature Rise Delta T, ℃	≥40	≥40
Dust Drops	≤44ppm	≤66ppm

Insulating Glass Molecular Sieves Adsorbents Desiccant Application

Absorbs water vapor from the glass and keeps it dry
Anticoagulant effect in winter
Absorb the floating dust in the air and plays a cleaning role due to the amount of powder falling by itself is very low
Recycled and reused and is harmless to the environment so plays an environmental role
Conjunction with aluminum strip sealant in glass to play an energy-saving role
