13X-HP PSA Oxygen Production Concentration Molecular Sieve Adsorbents

Short Description:

  • X Type Molecular Sieve
  • PSA Oxygen Molecular Sieve
  • 13X Molecular Sieve for Oxygen Concentration
  • 3X Zeolite Adsorbents
  • 13X Molecular Sieves for PSA Oxygen Generators
  • Zeolite 13X-HP

Product Detail

Product Tags

13X-HP Molecular Sieve Adsorbents Introduction

13X-HP molecular sieves adsorbents are special oxygen molecular sieves for oxygen production concentration, 13X-HP molecular sieves have a high nitrogen adsorption capacity, a higher nitrogen and oxygen separation coefficient, a higher oxygen concentration purity, a faster adsorption speed and a longer service lifetime, 13X-HP molecular sieves adsorbents are mainly used in medical oxygen generators, household and industrial oxygen concentrators.

13X-HP molecular sieve oxygen production principle: compressor (PSA) pressure adsorbs air, and the air is pumped into the molecular sieve. The molecular sieve adsorbs nitrogen and carbon dioxide in the air, leaving only oxygen into the cylinder, which is purified by high pressure through a high-pressure valve to adjust the concentration of the oxygen generator.

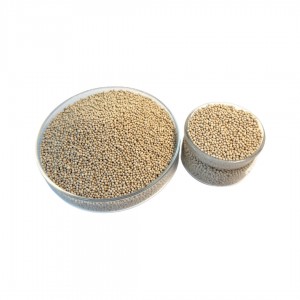

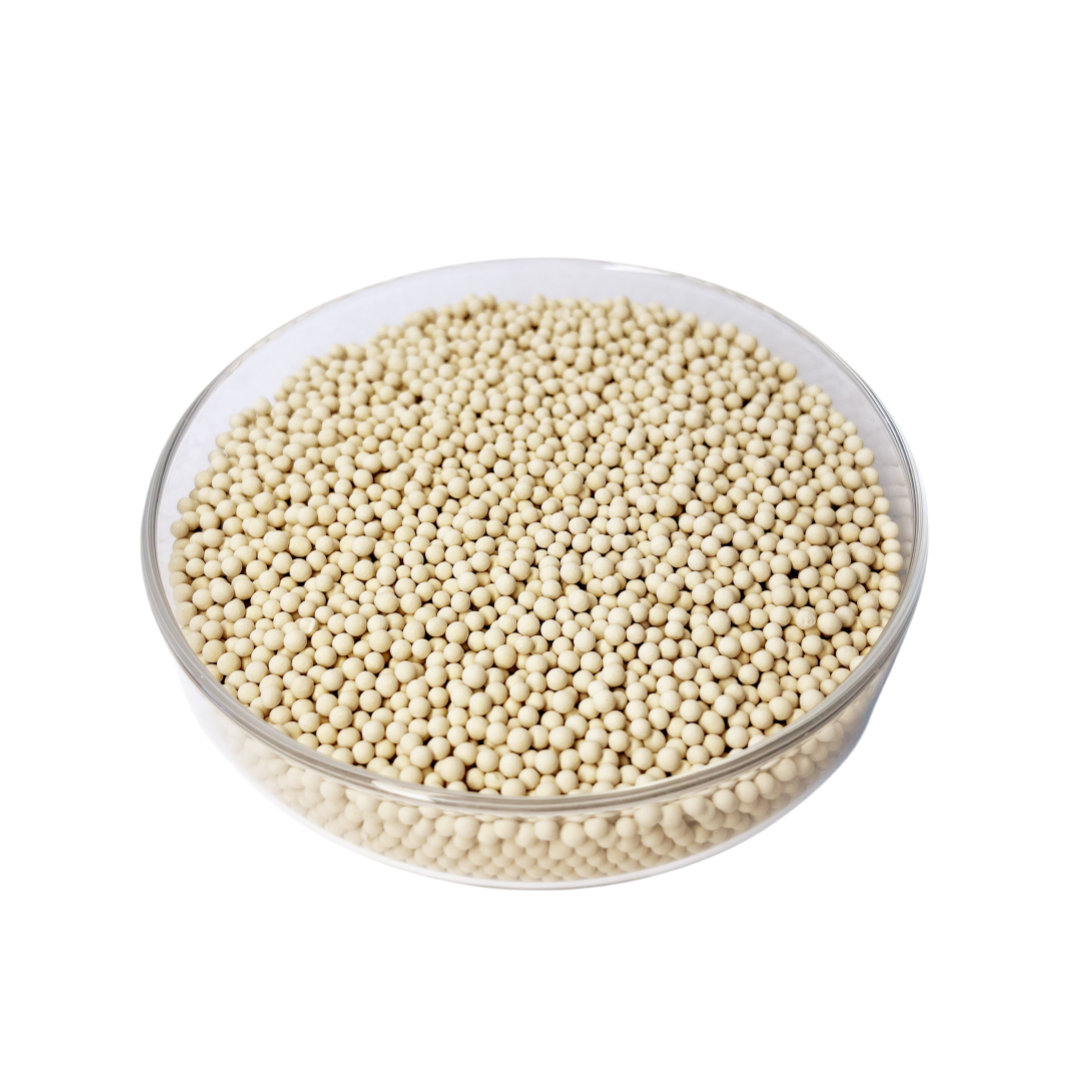

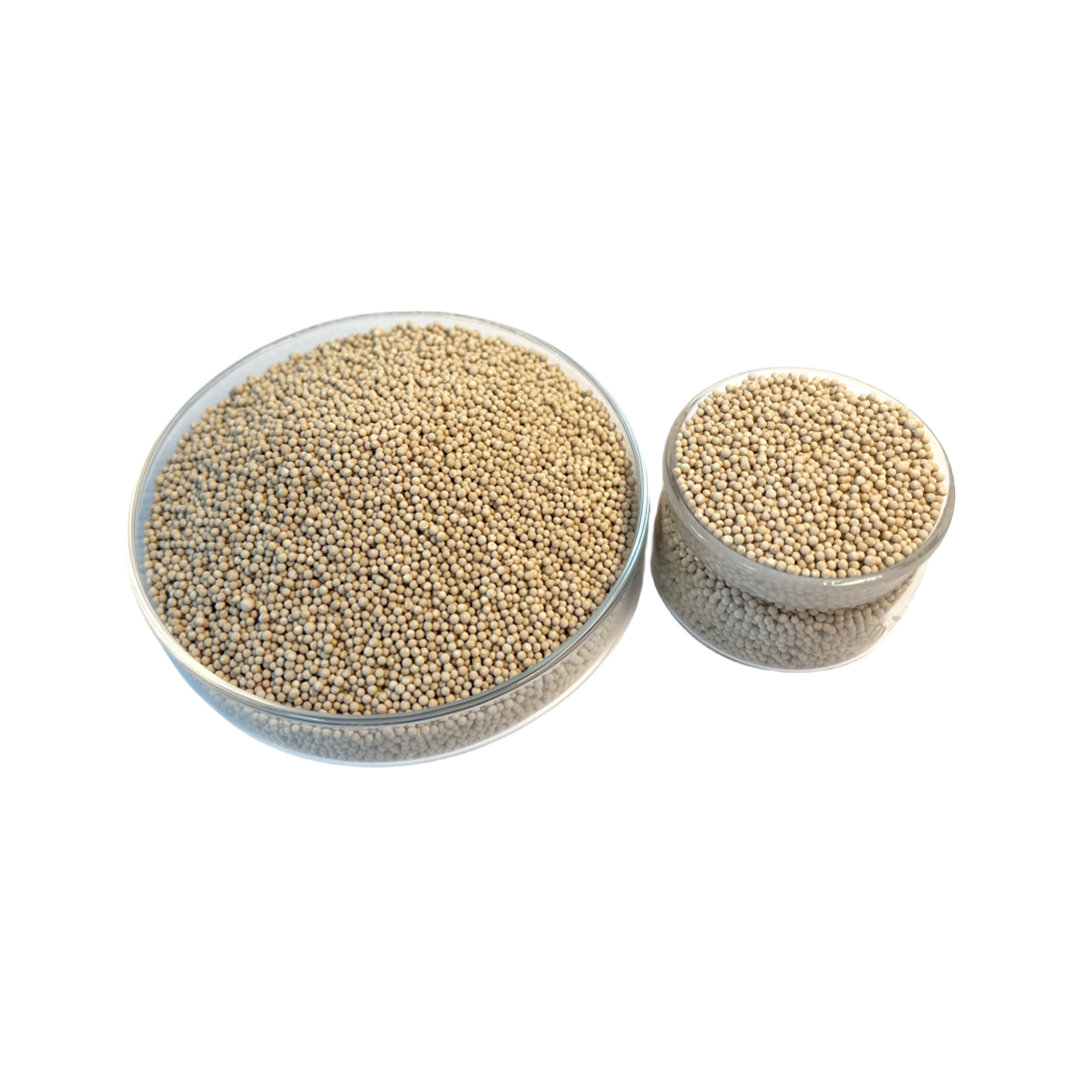

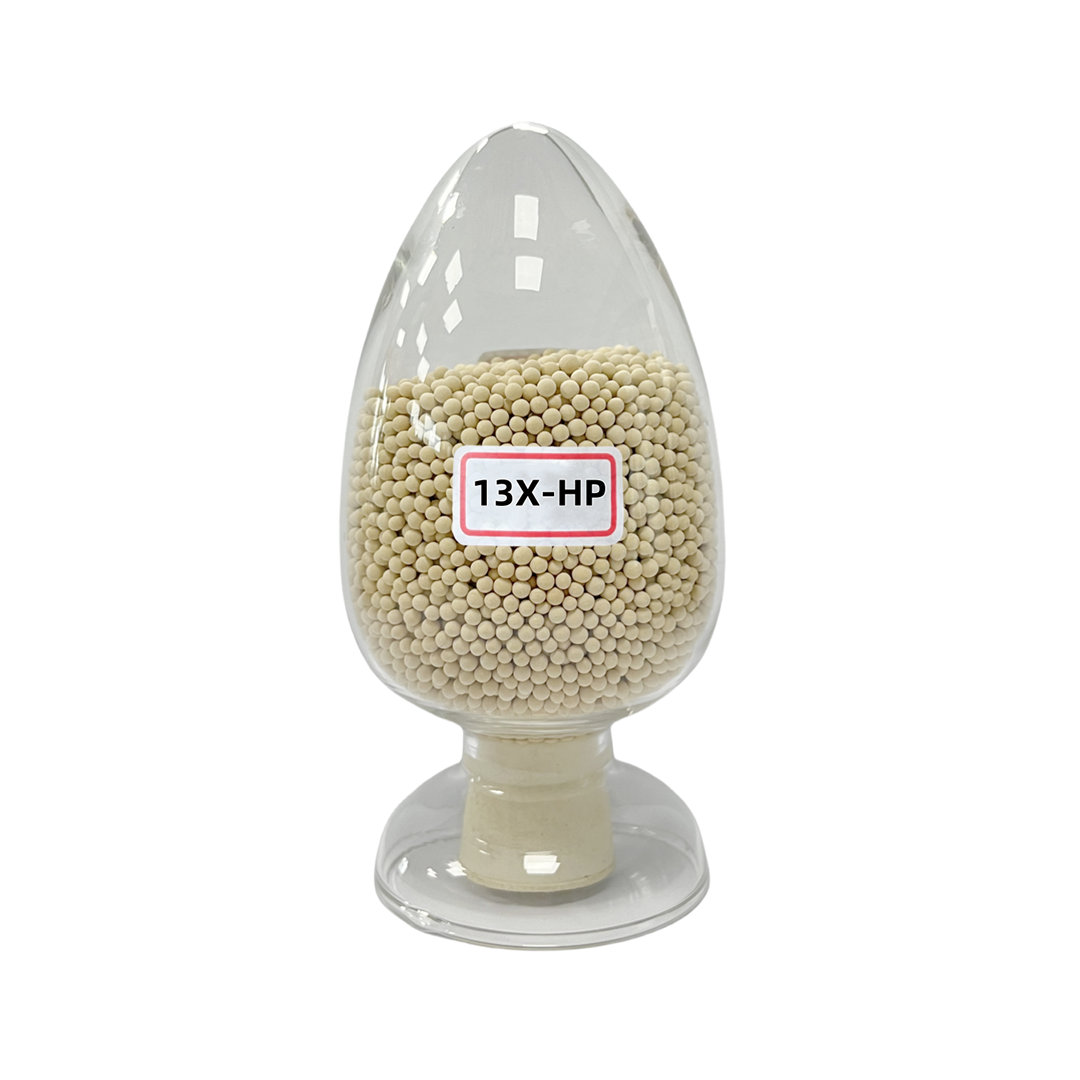

13X-HP Molecular Sieve Picture

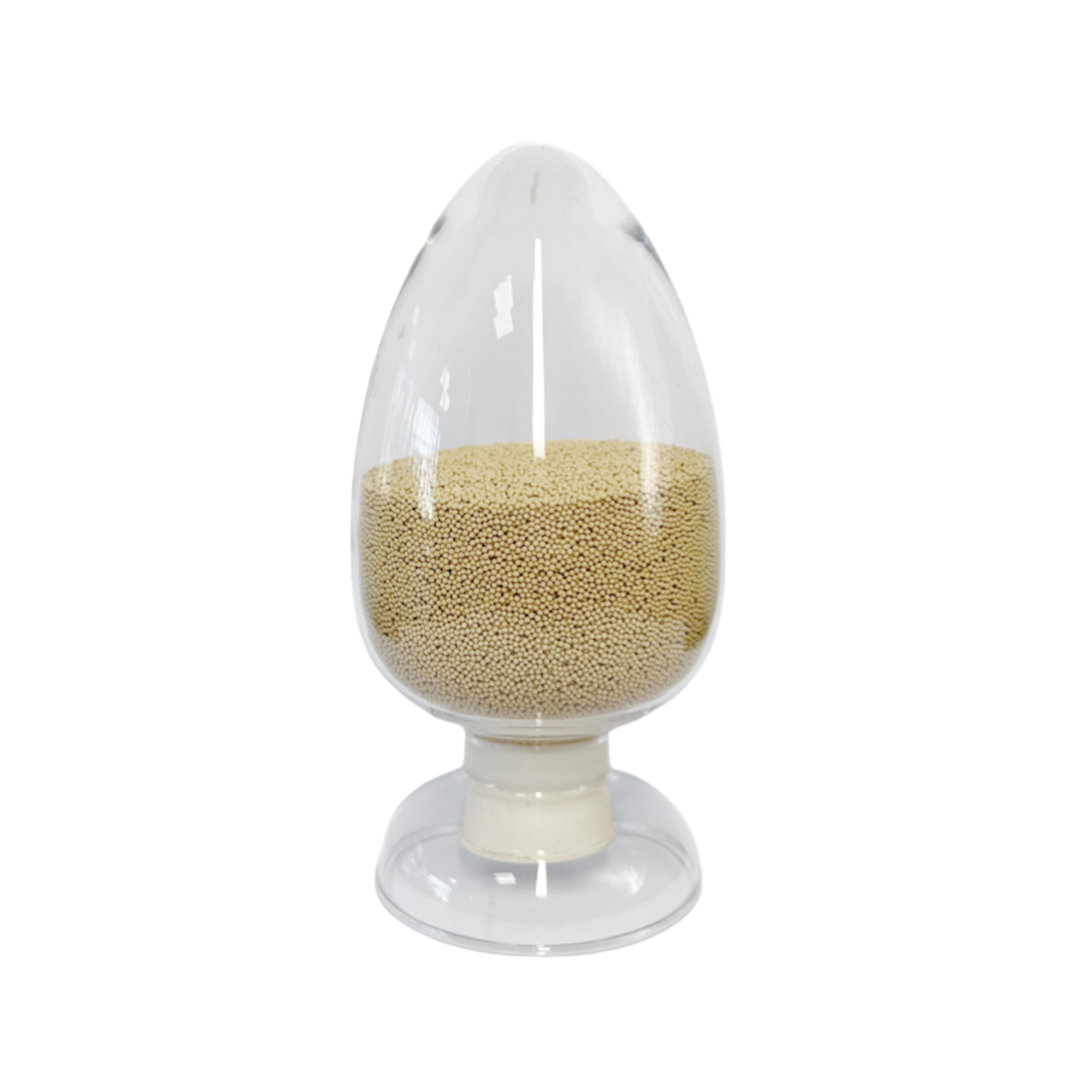

13X-HP molecular sieve pic1
13X-HP molecular sieve pic2

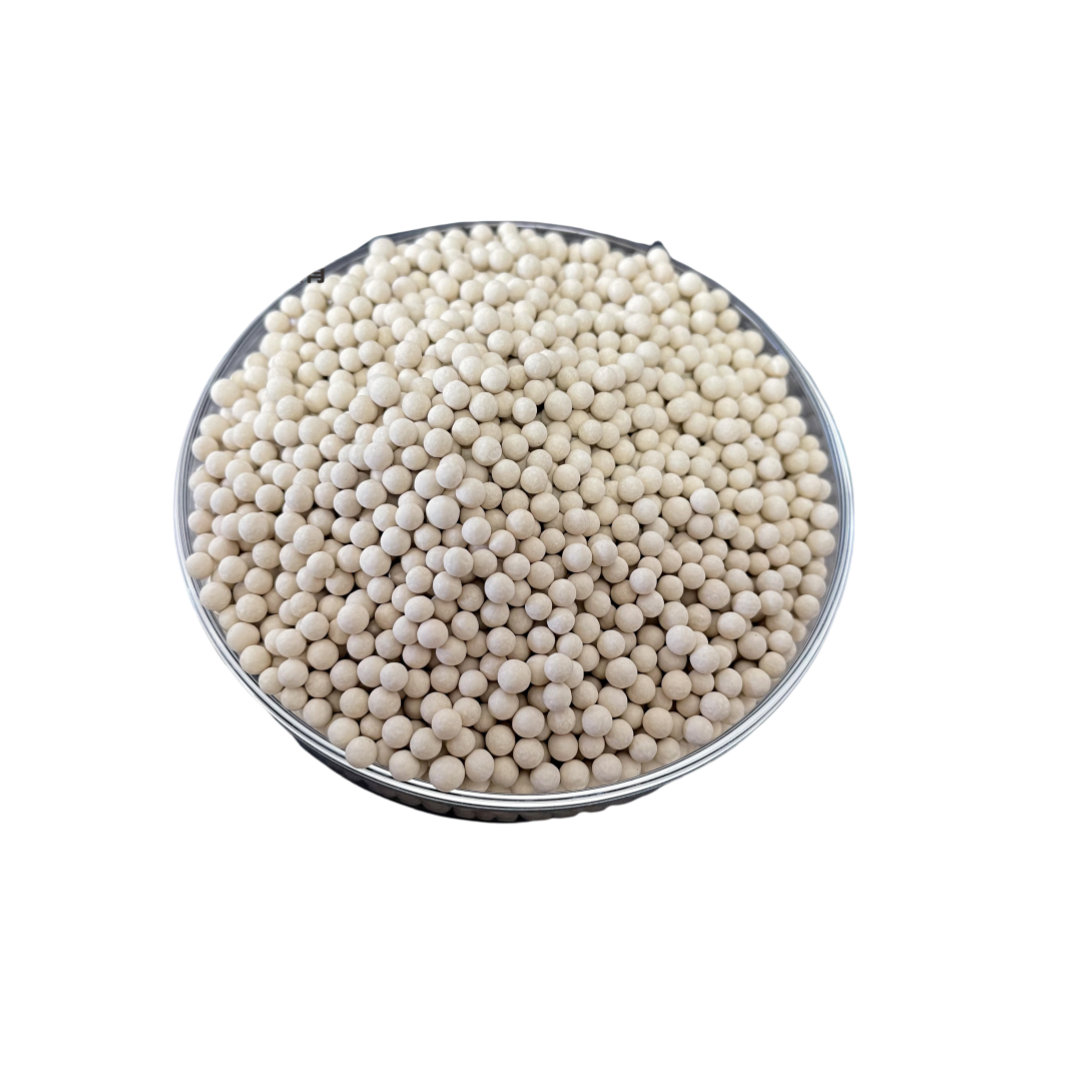

13X-HP molecular sieve pic3

13X-HP Molecular Sieve Adsorbents Technical Specification

Technical Index

Unit

Value

Appearance

Bead

Diameter

mm

1.6~2.5

Static H₂0 Adsorption Capacity at 25℃,Saturated NaCI, 24H

≥29

Static H₂0 Adsorption Capacity at 35℃,Saturated NaCI, 24H

≥28.5

Static N₂ Adsorption Capacity:25℃,760mmHg

ml/g

≥8

Nitrogen Oxygen Separation Coefficient

≥3

Package Water Content

≤1.5

Crush Strength

N

≥25

Relative Standard Deviation of Crush Strength

≤0.3

Static CO₂ Adsorption Capacity at 25℃,250mmHg

≥19

Compacted Bulk Density

g/ml

≥0.64

Abrasion Rate

≤0.1

Granularity(by Weight)

≥98

13X-HP Molecular Sieve Adsorbents Applications

  • VPSA industrial oxygen production
  • Oxygen production of medical respirators
